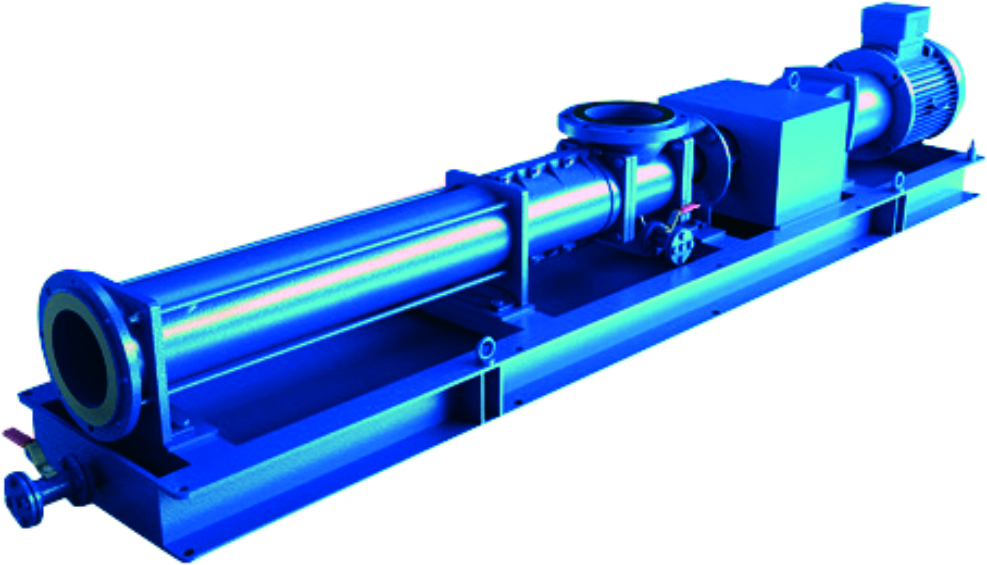

^螺桿泵（離心機供液泵）Mono Pump (Supply Pump for Centrifuge)^
作者：西安華揚油氣設備有限公司 發布日期：2018-10-26
在鉆井固控系統中，螺桿泵一般同鉆井液離心機配套使用且為單螺桿泵。
功能詳情 技術參數
西安華揚油氣設備有限公司螺桿泵產品特點Features and Benefits：
1.單螺桿泵是為離心機供漿的理想設備。主要部件有螺桿軸（轉子）和螺桿套管（定子）。兩部分獨特的幾何形狀能分別產生擠壓量，廢漿隨軸流動，內部流速低、保持容量及壓力穩定，這樣就不會產生渦旋和攪拌。泵螺桿由不銹鋼制成，西安華揚有全不銹鋼機身的螺桿泵可選。
( screw pump is an ideal pump for feeding to decanter centrifuge. The main parts are screw shaft (rotor) and screw shaft bushing (stator),Cause the special geometry shape of the two parts, form pressurize capacity separately. The fluids flow along with the shaft, slow inner flow speed, capacity remains, steady pressure, meanwhile it will not generate vortex and agitating., The shaft of the pump is made from Stainless steel, TR Solid Control Screw pump is available for complete stainless steel body.)
2.螺桿泵能夠用耦合器或通過變速電機調節速度、三角 V 形帶或齒輪箱等驅動。TRG 系列螺桿泵具有附件少，結構兼容，體積小，易保養的特點。轉子和定子是泵的易損件，方便替換。定子由人造橡膠材質制成。在轉送高黏度和硬懸浮物的廢漿方面比其他的泵有特殊優勢
It can drive by coupler, or adjust the speed by using variable speed motor, Triangle V-belt, gear box, etc. TR series screw pump is with less accessories,Compact structure, small volume,easy maintenance, rotor and stator are wear parts of this pump, it is convenient to replace.Stator is made of elastomeric material, it has particular advantages than other pump to transfer the fluids with high viscosity and hard suspended particles.
1.單螺桿泵是為離心機供漿的理想設備。主要部件有螺桿軸（轉子）和螺桿套管（定子）。兩部分獨特的幾何形狀能分別產生擠壓量，廢漿隨軸流動，內部流速低、保持容量及壓力穩定，這樣就不會產生渦旋和攪拌。泵螺桿由不銹鋼制成，西安華揚有全不銹鋼機身的螺桿泵可選。
( screw pump is an ideal pump for feeding to decanter centrifuge. The main parts are screw shaft (rotor) and screw shaft bushing (stator),Cause the special geometry shape of the two parts, form pressurize capacity separately. The fluids flow along with the shaft, slow inner flow speed, capacity remains, steady pressure, meanwhile it will not generate vortex and agitating., The shaft of the pump is made from Stainless steel, TR Solid Control Screw pump is available for complete stainless steel body.)
2.螺桿泵能夠用耦合器或通過變速電機調節速度、三角 V 形帶或齒輪箱等驅動。TRG 系列螺桿泵具有附件少，結構兼容，體積小，易保養的特點。轉子和定子是泵的易損件，方便替換。定子由人造橡膠材質制成。在轉送高黏度和硬懸浮物的廢漿方面比其他的泵有特殊優勢
It can drive by coupler, or adjust the speed by using variable speed motor, Triangle V-belt, gear box, etc. TR series screw pump is with less accessories,Compact structure, small volume,easy maintenance, rotor and stator are wear parts of this pump, it is convenient to replace.Stator is made of elastomeric material, it has particular advantages than other pump to transfer the fluids with high viscosity and hard suspended particles.
| 號Model |
流量 Flow rate |
壓力 Pressure |
功率Power | 進口尺寸Inlet | 出口尺寸Nozzle Caliber |
防爆標準 Ex Standard |
重量 Weight |
外形尺寸Dimension |
| HYG10A-040 | 10?/h | 0.3MPA | 4KW | 3 | 3 | ExdIIBt4 / IECEX / A-TEX | 245kg | 2245×320×550mm |
| HYG20A-055 | 20?/h | 5.5KW | 3 | 3 | 323KG | 2450×340×562mm | ||
| HYG30A-075 | 30?/h | 7.5KW | 4 | 4 | 386kg | 2761×370×600mm | ||
| HYG40A-110 | 40?/h | 11KW | 5 | 5 | 454kg | 3270×370×665mm | ||
| HYG50A-110 | 50?/h | 11KW | 5 | 5 | 608kg | 3790×400×782mm | ||
| HYG60A-115 | 50?/h | 15KW | 5 | 5 | 649kg | 3322×550×740mm | ||
| HYG70A-220 | 70?/h | 22KW | 6 | 6 | 875kg | 3740×420×785mm | ||
| HYG80A-220 | 80?/h | 22KW | 6 | 6 | 875kg | 3740×420×785mm | ||
| HYG90A-220 | 90?/h | 22KW | 6 | 6 | 875kg | 3740×420×785mm |
